Download and Install Service Mesh

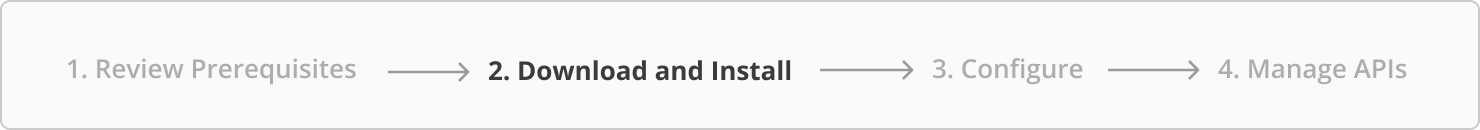

install service mesh breadcrumb

Download Anypoint Service Mesh Client

You install, manage, and troubleshoot your Anypoint Service Mesh instance by using the Anypoint Service Mesh client.

To download the Anypoint Service Mesh client, type the following command at the command prompt:

curl -Ls http://anypoint.mulesoft.com/servicemesh/xapi/v1/install > asmctl && chmod +x asmctl

Configure Your Environment Variable on Unix-like Systems

Before you install Anypoint Service Mesh, configure your PATH environment variable to store system-wide values, such as the directories to search for the executable programs.

To configure your PATH variable on Linux:

  1. Open the .bashrc file in your home directory.

    For example, type nano ~/.bashrc to open the file with the nano text editor.

  2. Add the following command to the last line of the file:

    export PATH=your-dir:$PATH, where your-dir is the directory you want to add.

  3. Save the .bashrc file.

  4. Restart your terminal.

Install Anypoint Service Mesh

When you invoke the installer, Service Catalog, Anypoint Service Mesh Broker, and ClusterIP Service components are installed in your Kubernetes Cluster. The installer performs several steps as part of the installation, such as checking for dependencies and performing various configurations.

You can install Anypoint Service Mesh using the following options:

Task Prerequisites

Before you install Anypoint Service Mesh, ensure that you have completed the installation prerequisites. You will require the credentials and license information acquired from the prerequisites to perform the installation.

Install without Proxy

To install Anypoint Service Mesh without a proxy, perform the following steps:

  1. In the location from which you downloaded your Anypoint Service Mesh client, type:

    asmctl install --clientId=<clientId> --clientSecret=<clientSecret> --license=<license absolute or relative path> --platformUri=<Anypoint Platform Uri>

    Anypoint Service Mesh installs within few minutes and displays a status:

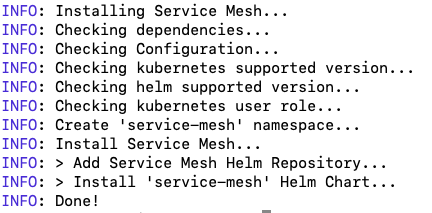

    Example installation output

    If an installation error occurs, the installer times out and uninstalls all previously installed Anypoint Service Mesh components.

  2. Verify the status of all pods:

    kubectl get pods -n service-mesh

    Anypoint Service Mesh is installed and a status of all pods is displayed:

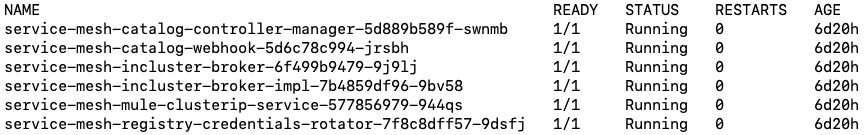

    Anypoint Service Mesh installer output

Install with Proxy

If you need to install Anypoint Service Mesh in a proxy environment, provide the proxy configuration during the installation.

  1. In the location from which you downloaded your Anypoint Service Mesh client, type:

    asmctl install --clientId=<clientId> --clientSecret=<clientSecret> --license=<license absolute or relative path> --platformUri=<Anypoint Platform Uri> --proxyHost=<host> --proxyProtocol=<protocol> --proxyPort=<port> --proxyUser=<proxy username> --proxyPassword=<proxy password>

    Parameter Name Description Required or Optional Default Value

    clientId

    The client ID of the environment (recommended) or the organization

    Required

    None

    clientSecret

    The client secret of the environment (recommended) or the organization

    Required

    None

    license

    The path to the location where your license is stored

    Required

    None

    mtls

    Enable Mutual TLS (mTLS) authentication in adapter connections: enabled or disabled

    Optional

    disabled

    platformUri

    The URL of the platform

    Optional

    https://anypoint.mulesoft.com

    proxyHost

    The name of the proxy host

    Optional

    None

    proxyProtocol

    The protocol used by the proxy: HTTP or HTTPS

    Optional

    None

    proxyPort

    The port number used by the proxy

    Optional

    None

    proxyUser

    The username for the proxy authentication

    Optional

    None

    proxyPassword

    The password for the proxy authentication

    Optional

    None

    Anypoint Service Mesh installs within few minutes and displays a status:

    Anypoint Service Mesh installation output

    If an installation error occurs, the installer times out and uninstalls all previously installed Anypoint Service Mesh components.

  2. Verify the status of all pods:

    kubectl get pods -n service-mesh

    Anypoint Service Mesh is installed and the status of all pods is displayed:

    Pods displayed
