Troubleshoot API Provisioning Issues

After you provision an adapter, you must create an API to bind the service to, which might require you to troubleshoot the following errors:

Incorrectly configured client secret
API provisioning failure

Incorrectly Configured Client Secret

If using a secret when you create an API, you must verify that you are correctly referencing the secret.

Cause

If you provide incorrect credentials, the following error occurs:

Credentials error when provisioning APIs

Diagnosis

To diagnose the issue:

Describe your service instance using the kubectl describe serviceinstance api_instance_name command:

$ kubectl describe serviceinstance inventory-resource-api In the Status field, a detailed description of the error is displayed:

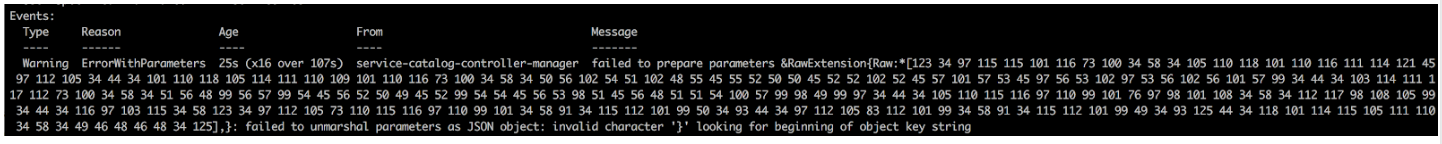

Error with parameters when provisioning APIs

In the following example, an error occurred due to an extra comma in the stringData section that is provided after the password segment:

apiVersion: v1
kind: Secret
metadata:
  name: my-credentials
  namespace: nto-payment
type: Opaque
stringData:
  user-pass:
    '{
      "user": "<user>",
      "password": "<password>",
    }'

Solution

To resolve this issue:

Delete the API.
Resolve the username and password error.
Re-create the API.

API Provisioning Failure

When you provision an API by using Anypoint Service Mesh, the asset (in Exchange) and the API instance (in API Manager) might not be successfully created in Anypoint Platform.

Causes

This error can occur if you are attempting to:

Re-create an asset in Exchange that was more than seven days old before being deleted
Provision an API with invalid values

Diagnose

To diagnose this issue:

Run the $ asmctl api list command.

The status of the API is displayed as ProvisionCallFailed.

Run the asmctl api logs --name=<replace_with_api_name> --namespace=<replace_with_namespace> command.

The following output illustrates provisioning an API with an invalid version:

DATE                   MESSAGE
2020-05-29T17:12:36Z   Error provisioning ServiceInstance of ClusterServiceClass (K8S: "1c3b2100-5cdc-49ea-9423-dd7170e674b4" ExternalName: "anypoint-platform-api-instance") at ClusterServiceBroker "service-mesh-incluster-broker": Status: 400; ErrorMessage: Bad Request; Description: version: should match pattern "^\d+\.\d+\.\d+(-.+)?$" (ID: 49724b5d-7fad-4cc3-980e-695c2e47b383); ResponseError: <nil>

If no information is displayed, run the kubectl describe serviceinstances <replace_with_api_name> -n <replace_with_namespace> command.

The status section of the resource displays an error message explaining the issue:

Error provisioning ServiceInstance of ClusterServiceClass (K8S: "1c3b2100-5cdc-49ea-9423-dd7170e674b4"
ExternalName: "anypoint-platform-api-instance") at ClusterServiceBroker "service-mesh-incluster-broker": Status: 410; ErrorMessage: Gone; Description: Error from Exchange: There is no asset matching given parameters. (ID: 79d0cc7f-9969-477b-816d-c822916c0290); ResponseError: <nil>' reason: ProvisionCallFailed

In this case, the error is caused by an attempt to re-create an asset in Exchange that was more than seven days old before being deleted. Because Exchange does not allow that operation, provide a new assetId to create a new asset.

Solution

To resolve this issue:

Delete your API:

asmctl api delete --name=<replace_with_api_name> --namespace=<replace_with_namespace>
Fix the error by privding a new asset ID.
Re-create the API.
