On-Error Error Handlers

This version of Mule reached its End of Life Leaving the Site on May 2, 2023, when Extended Support ended.

Deployments of new applications to CloudHub that use this version of Mule are no longer allowed. Only in-place updates to applications are permitted.

MuleSoft recommends that you upgrade to the latest version of Mule 4 that is in Standard Support so that your applications run with the latest fixes and security enhancements.

When an error occurs in a Mule app, an Error Handler component routes the error to the first On-Error component (On Error Continue or On Error Propagate) configuration that matches the Mule error, such as HTTP:NOT_FOUND, DB:CONNECTIVITY, or ANY (the default for all Mule errors). If no error handling is configured for the error, the app follows a default error handling process.

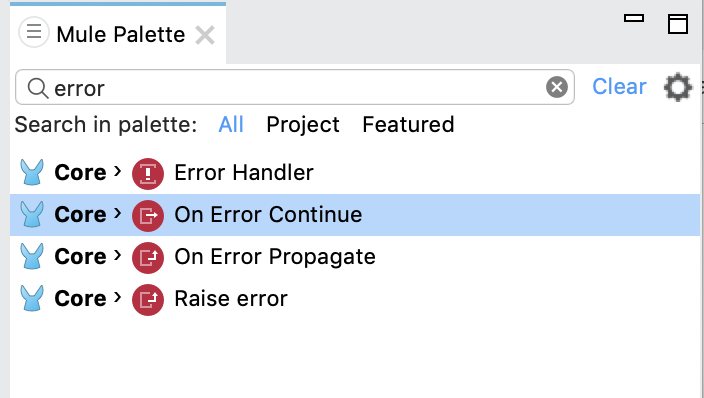

Figure 1. Error Handling Components in Studio

On-Error components differ in the way they affect their owner, that is, the Flow or Try scope where they are defined.

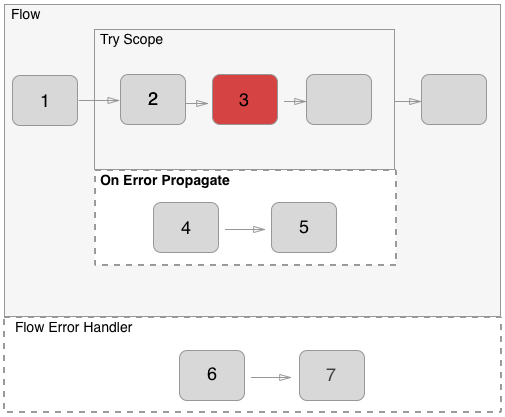

On Error Propagate: Executes but propagates the error to a higher level, such as a containing scope (for example, to a Flow that contains a Try scope where the error occurs) or external flow containing a Flow Reference to the flow in which an error occurs. The error breaks the owner’s execution and propagates to that higher level, causing a failure at that level. In addition, any transaction the owner handles is rolled back. However, note that the transaction is not rolled back if another component (one that does not own On Error Propagate) created the transaction.
On Error Continue: Executes and uses the result of the execution as the result of its owner, as if the owner completed the execution successfully. Any transaction the owner handles is committed. However, note that the transaction is not committed if another component (one that does not own On Error Propagate) created the transaction.

Error Matching

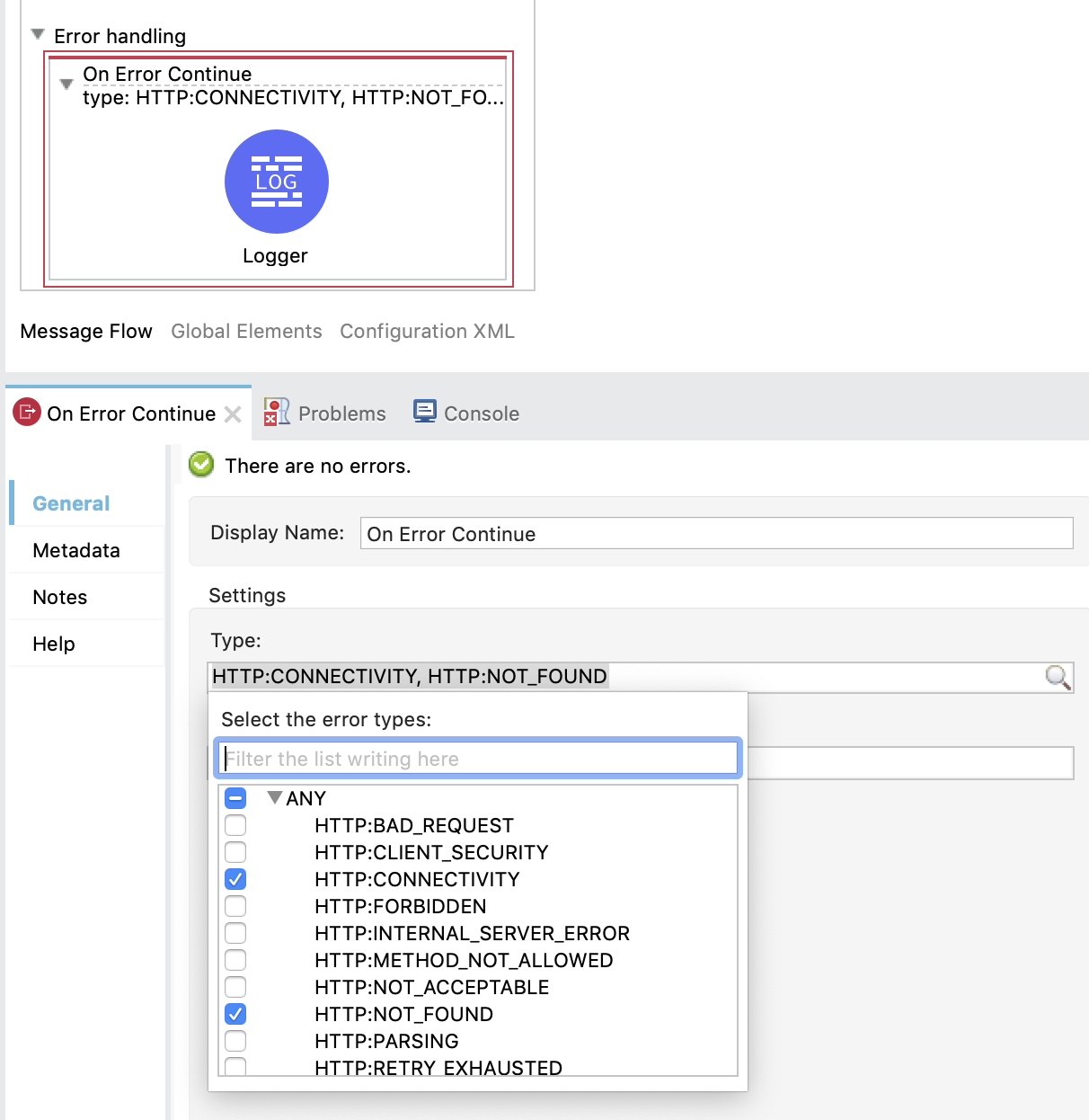

To help you identify and handle potential errors when designing a Mule app, On-Error components list the errors that the runtime engine and operations configured in the app can throw. You can select the errors you want to handle.

Matching: On-Error components can perform matching based on error types you select. The list of selectable error types depends on the module and connector operations within the flow or scope to which the On-Error component applies. It also lists EXPRESSION and STREAM_MAXIMUM_SIZE_EXCEEDED errors, which the runtime can throw.
Matching expression (for more advanced use cases): You can perform error matching based on a when condition that you define in the When field of an On-Error component. For example, you might map the component to fatal errors, which have error messages that contain the word "fatal":
- When field configuration in the UI: error.cause.message contains "fatal"
- XML configuration example:
  <on-error-continue enableNotifications="true" logException="true" type="ANY" when='error.cause.message contains "fatal"'/>
  xml

Note that matching conditions are evaluated sequentially, in the order in which the On-Error components reside in the error handler. For example, if you want to handle VALIDATION:NOT_NULL in one way but handle all other errors a different way, provide an On-Error component configuration for that error before a component that captures the remaining errors (identified as ANY by the second On-Error component). Remember that default error handling takes place for errors you do not explicitly match or use ANY to capture.

The following error handlers are configured to produce { "MyError": "value was expected to be null" } for a VALIDATION:NOT_NULL error, rather than { "messageANY" : "Some other error" }. The string value was expected to be null is the description of the VALIDATION:NOT_NULL error. The Is Null component can throw this error. Is Null belongs to the Validation module.

<error-handler >
  <on-error-continue enableNotifications="true"
    logException="true"
    type="VALIDATION:NOT_NULL">
    <ee:transform >
      <ee:message>
        <ee:set-payload><![CDATA[%dw 2.0
output application/json
---
{
MyError : error.description as String
}]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </on-error-continue>
  <on-error-continue
    enableNotifications="true"
    logException="true"
    type="ANY">
    <ee:transform>
      <ee:message >
        <ee:set-payload ><![CDATA[%dw 2.0
output application/json
---
{
"messageANY" : "Some other error"
}
]]></ee:set-payload>
      </ee:message>
    </ee:transform>
  </on-error-continue>
</error-handler>xml
Expand content

By default, On-Error components also log matching errors and enable error notifications for occurrences of the errors. You can disable those settings through the XML.

Configuration and Use

In most cases, you configure On-Error components within the scope-like Error Handler component. Though each flow contains only one built-in Error Handler, the Error Handler can contain as many On-Error components as you require, and each On-Error component can contain any number of other components, such as Loggers and other components that you configure to handle errors captured by the On-Error component.

Because an Error Handler component is built into Flow and Try components, you can use On-Error components for errors that occur within the scope of a flow or within a Try component. For examples, see Using On-Error Components to Handle Messaging Errors.

You can also use On-Error components in a separate Error Handler configuration that is referenced from a Flow component or Try scope (see Referencing a Global Error Handler).

Error Handling within a Flow

Within a flow’s built-in Error Handler component, you can set up one or more On Error components to match error types and expressions. The following example outlines the general structure for handling errors that occur within a given flow. One flow uses On Error Continue (on-error-continue) in its Error Handler component. The other flow uses On Error Propagate (on-error-propagate).

<flow name="catch">
  <!-- flow logic -->
  <error-handler>
    <on-error-continue>
      <!-- error handling logic -->
    </on-error-continue>
  </error-handler>
</flow>

<flow name="rollback">
  <!-- flow logic -->
  <error-handler>
    <on-error-propagate>
      <!-- error handling logic -->
    </on-error-propagate>
  </error-handler>
</flow>xml

For examples, see Using On-Error Components to Handle Messaging Errors.

Reuse of On-Error Scopes

Just as you can share error handlers by exposing them globally and referencing them in flows and try scopes, you can also reuse On-Error components. You can define and name an On-Error component globally and then reference from an Error Handler component.

Example: XML Configuration for Referenced On-Error

<on-error-propagate name="sharedPropagateHandler">
  <logger message="An unhandled error has occurred."/>
</on-error-propagate>

<on-error-continue type="EXPRESSION" name="sharedContinueHandler">
  <logger message="An expression failed to evaluate."/>
</on-error-continue>

<error-handler name="reusingHandlers">
  <on-error ref="sharedContinueHandler"/>
  <on-error-continue type="ROUTING">
    <logger message="An expression failed to evaluate."/>
  </on-error-continue>
  <on-error ref="sharedPropagateHandler"/>
</error-handler>xml

For other reuse examples, see Referencing a Global Error Handler.
